CAM Class II Forklift Forks: Load Center and Capacity Explained

The 5,500 Lb Number Isn't the Whole Story

Every set of forks has a capacity stamped on the data plate, and every operator reads it the same way: "my forks are rated for 5,500 lbs, so I'm good." That number is only true under one condition — the load has to sit at a specific distance from the heel of the fork, called the load center.

Push that same weight farther out toward the tips, and the forks aren't carrying 5,500 lbs anymore in any meaningful sense. The moment arm — the distance between the load's center of gravity and the heel of the fork where it meets the carriage — has gotten longer. Longer moment arm means more leverage working against your machine, even though the scale would still read the same weight.

This is why two pallets that both weigh 4,000 lbs can behave completely differently on the same set of forks. One sits tight against the backrest. The other is stacked wide and loose, with the bulk of its weight hanging out near the tips. The second one will make your skid steer feel nose-heavy and unstable long before the first one does — same weight, different load center.

What "Load Center" Actually Means

Forklift capacity ratings are built around a standard reference point — a 24-inch load center is the common industry convention used on most fork and carriage capacity plates. That means the rated capacity assumes the load's center of gravity sits 24 inches out from the fork's heel, which is roughly where a standard 48" pallet's weight settles when it's loaded evenly and pushed all the way back.

Move the center of gravity out past that point — say you're carrying something long, irregular, or loaded unevenly toward the front — and your effective capacity drops. Move it in closer, and you've got more margin. This is why operators who run odd-shaped loads (pipe, lumber, equipment on skids) need to think about where the weight actually sits, not just what it weighs.

You can't always calculate this to the inch in the field, but you can read the warning signs:

• The rear of the skid steer feels light or wants to lift when you tilt the mast back
• The machine rocks or dips when you lift the load off the ground
• Steering feels vague or the front end "floats" at low lift heights

Any of those mean the load center has moved too far out for the weight you're carrying. Set it down, reposition it tighter to the backrest, or break it into a lighter load before you try again.

Matching Fork Length to Your Pallet Loads

Fork length matters as much as capacity. A fork that's too short for the pallet lets the load hang off the tips, which pushes the load center out and eats into your real capacity before you've even lifted it. A fork that's too long for the job just adds unnecessary weight and reach you don't need, and makes tight spaces harder to work in.

A 42-inch fork is a solid match for standard 48" x 40" pallets — long enough to fully support the pallet with the load resting close to the heel, without so much overhang that you're fighting clearance in trailers or doorways. If you're running standard pallet freight, lumber bunks, or bagged material on pallets, 42" forks keep the load center where it's supposed to be without forcing you to compromise on maneuverability.

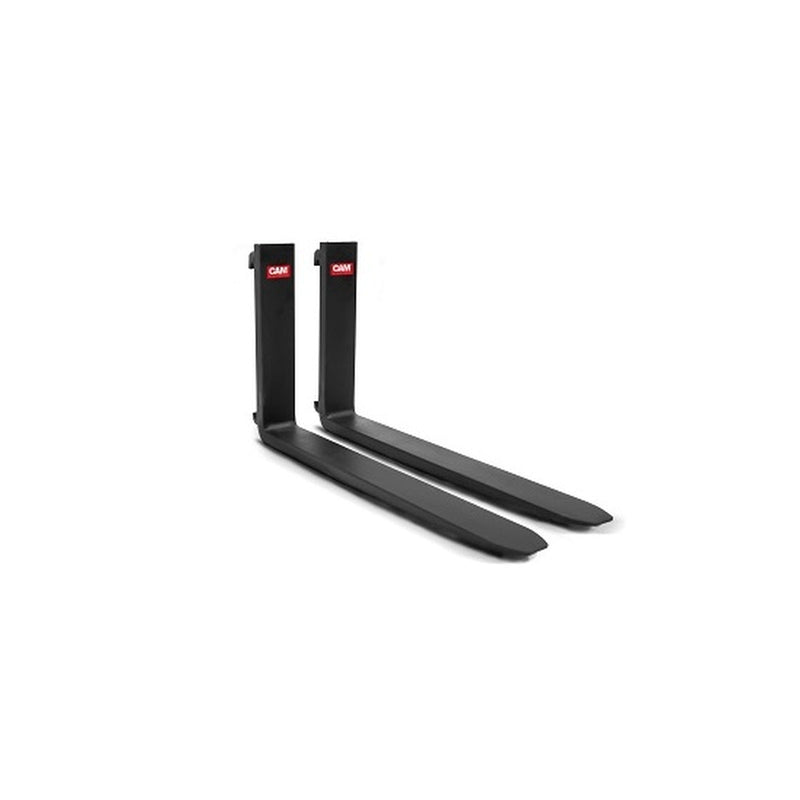

The CAM Class II Forklift Forks – Pair run 42" x 4" x 1.5" with a 5,500 lb capacity rating, built on a mini universal mount pattern for skid steers and compatible mini loaders. They're made in the USA, which means the steel and the welds are built to a standard you can trace, not a container that showed up with no paperwork.

Safe Stacking Practices for Skid Steer Operators

Running forklift forks on a skid steer is different from running a sit-down forklift, mainly because your rated operating capacity and your fork capacity are two separate numbers that both have to check out.

• Check your skid steer's own operating capacity first. The forks might be rated for 5,500 lbs, but your machine's rated operating capacity could be the limiting factor. Don't assume the fork rating is the ceiling.
• Keep the load tight to the backrest. Every inch you let a pallet creep forward on the forks pushes your load center out and cuts into your margin.
• Travel with the load low. High loads raise the center of gravity and make tipping far more likely on uneven ground or a turn.
• Tilt back before you drive. A slight back-tilt keeps the load from sliding forward during travel, which keeps the load center where you set it.
• Stack with visibility in mind. If you can't see over or around a stack, you can't see what's in front of your tires. Stage loads so you've got a sightline, or back up and spot a second person.
• Don't exceed stack height you can lift to safely. If you're double-stacking pallets, check that your lift height and reach don't put you fighting the mast at full extension, which is where tipping risk goes up fast.
• Inspect the forks before every shift. Look for bent tines, a heel that's started to crack, or a taper that's wearing unevenly — any of these change how the fork actually carries weight regardless of what the data plate says.

Get in the habit of asking where the weight sits before you ask how much it weighs. That one habit will keep you well inside the rating stamped on your forks, and it's the difference between a load that rides steady and one that has you white-knuckling the joystick across the yard.
