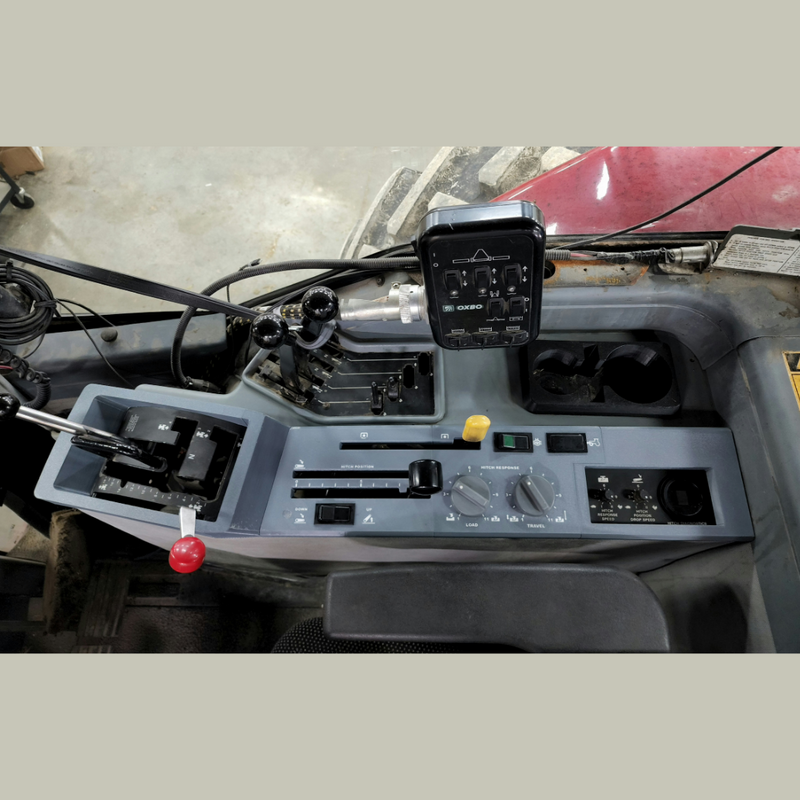

CaseIH Magnum Console Panel: Get the Right Fit, Every Time

Why Your CaseIH Magnum Console Panel Needs Attention

Running a CaseIH Magnum tractor means you're serious about work. But years of sun, vibration, and daily use take their toll on the interior. A cracked, faded, or broken console panel isn't just an eyesore; it can expose wiring, make controls harder to use, and even become a safety hazard. When it's time for a replacement, getting the right fit is crucial. You don't want to order the wrong part and waste valuable time and money.

At SmithCustomz, we understand the frustration. We're American manufacturers who build heavy-duty attachments and replacement parts for operators like you. We know what it takes to keep your equipment running smoothly. This guide will walk you through exactly what to look for when buying a new console panel for your CaseIH Magnum, ensuring you get the perfect match.

Identify Your Magnum Series: 7100, 7200, or 8900?

First things first, you need to know which Magnum series you're operating. While they share many similarities, there are distinct differences in their console configurations, particularly when it comes to the Power Take-Off (PTO) system.

• CaseIH Magnum 7100 Series (7110, 7120, 7130, 7140, 7150): These were the trailblazers. Generally, these models were equipped with a Lever PTO.
• CaseIH Magnum 7200 Series (7210, 7220, 7230, 7240, 7250): This series represents a transition period. Early 7200s often came with Lever PTO, while later production models started to feature the Electronic PTO (EPTO). This is where careful inspection of your specific tractor becomes absolutely critical.
• CaseIH Magnum 8900 Series (8910, 8920, 8930, 8940, 8950): These later models predominantly utilized the more modern EPTO system.

Knowing your series is a good starting point, but it's not enough. The key differentiator for your console panel selection is the PTO type.

The Critical Choice: Lever PTO vs. Electronic PTO (EPTO)

The biggest mistake operators make is ordering a console panel that doesn't match their tractor's PTO configuration. The difference is clear once you know what to look for.

What is PTO?

The Power Take-Off (PTO) is a system that allows your tractor to transfer mechanical power to an implement, such as a baler, mower, or sprayer. How you engage that PTO is what determines your console panel needs.

Lever PTO Configuration

If your tractor has a Lever PTO, you'll see a distinct, physical lever, typically located to the right of your seat or on the console itself, that you physically pull or push to engage the PTO. This lever will pass through a cutout in your console panel.

• Look for: A prominent, often metal, handle or lever that you manually operate.
• Panel Impact: Console panels designed for Lever PTO will have a specific opening or slot to accommodate this lever.
• SmithCustomz Option: If you have a Lever PTO on your 7100 or early 7200 Series Magnum, check out our CaseIH Magnum 7100 & Early 7200 Replacement Console Panel (Lever PTO). It's built tough, right here in the USA, to perfectly fit these models.

Electronic PTO (EPTO) Configuration

With an Electronic PTO (EPTO), there's no physical lever passing through the console. Instead, you'll engage the PTO using a push-button, rocker switch, or similar electronic control that's usually integrated directly into the console panel or a nearby control pod.

• Look for: Buttons or switches for PTO engagement on the console, with no large lever cutout.
• Panel Impact: Console panels for EPTO systems will have different cutouts for these electronic controls and no large slot for a lever.
• SmithCustomz Option: For your later 7200 Series or 8900 Series Magnum with EPTO, our CaseIH Magnum 7200 & 8900 Series Replacement Console Panel (EPTO) is designed to match your electronic controls precisely.

The bottom line: Go out to your tractor and visually confirm your PTO type. Don't guess based on the year alone, especially with 7200 Series models.

What Else to Inspect Before You Order

Once you've nailed down your PTO type, there are a few other quick checks to ensure a smooth replacement process.

• Check for Additional Cutouts: Have you installed any aftermarket gauges, switches, or monitor mounts? While SmithCustomz panels are designed to match OEM specifications, custom modifications on your end might require slight alterations to the new panel.
• Mounting Points: Take a look at the condition of your existing console's mounting points. Are they still solid? Our panels are designed to bolt right into the factory locations, but if your underlying frame is damaged, that needs addressing first.
• Wiring Harnesses: You'll be disconnecting and reconnecting your existing wiring. Make sure your harnesses are in good shape and can reach the new panel's connections without strain. It's a good time to inspect for any frayed wires.
• Cupholder Condition: While you're upgrading your console, consider if your cupholder is still up to snuff. Many original cupholders get brittle and break over time. A fresh console deserves a solid cupholder. We offer a durable CaseIH Magnum Series Cupholder Replacement that fits perfectly.

The SmithCustomz Difference: American-Made Quality

When you're working long hours in the field, you need parts that can stand up to the job. That's why all SmithCustomz replacement panels and attachments are built with pride right here in Illinois, USA. We use high-quality materials and precise manufacturing processes to ensure a perfect fit and lasting durability, often exceeding the original OEM parts. You're investing in a product designed by fabricators who understand the demands of heavy equipment.

A Quick Note on Installation

Replacing your console panel is a straightforward job, but a few tips can save you headaches:

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on electrical components.
2. Take Photos: Snap pictures of your existing wiring and connections before you disconnect anything. This will be invaluable during reassembly.
3. Label Wires: If you have many connections, a little masking tape and a marker can prevent confusion.
4. Be Gentle: Old plastic can be brittle. Take your time removing the old panel and installing the new one.

Your Actionable Takeaway

Before you hit "add to cart" for a replacement console panel, do your homework. Get out to your CaseIH Magnum, confirm your exact series, and most importantly, verify whether you have a Lever PTO or an Electronic PTO (EPTO) system. This simple check will save you time, money, and frustration, ensuring you get a high-quality, American-made replacement that fits like it came from the factory floor.
