Choose the Right Drop Hitch & Ball Mount for Towing Heavy Gear

Why Your Drop Hitch Matters More Than You Think

As an operator, you know the drill: hook up the trailer, load the machine, and hit the road. But how much thought do you put into the hitch connecting your loader to your trailer? A properly matched drop hitch and ball mount isn't just about convenience; it's about safety, stability, and preventing costly damage or, worse, an accident.

Choosing the right setup means understanding a few key specs. Get these wrong, and you’re asking for trouble. Let’s break down what you need to look for.

The Critical Factors for Choosing Your Drop Hitch and Ball Mount

There are four main specifications you need to consider when selecting a drop hitch and ball mount:

Receiver Shank Diameter
Drop or Rise Measurement
Ball Size
Weight Rating

Let's go through each one so you can make an informed decision.

1. Receiver Shank Diameter: Matching Your Receiver

This is straightforward. Your drop hitch’s shank – the part that slides into your vehicle’s receiver tube – needs to match the receiver’s internal opening. For most skid steers, mini track loaders, and trucks, a 2-inch receiver shank is standard. Some heavy-duty trucks might have a 2.5-inch or even 3-inch receiver, but for typical equipment towing with a compact loader, 2 inches is what you’ll usually find.

2. Drop or Rise: Leveling Your Load

This is where things get a bit more involved. The goal is to keep your trailer as level as possible when hooked up to your tow vehicle. Why? A level trailer tracks better, puts less strain on the hitch and trailer components, and distributes weight correctly across the trailer axles. If your trailer is nose-high or nose-low, you're looking at uneven tire wear, unstable towing, and potential sway.

How to Measure for Drop/Rise:

Park your tow vehicle (skid steer, truck) on a level surface. Measure from the ground to the inside top of your receiver tube opening. Write this down.
Park your trailer on a level surface. Use a jack to make the trailer frame perfectly level. Measure from the ground to the bottom of the trailer’s coupler. Write this down.
Compare the two measurements:
- If your receiver height is higher than your coupler height, you need a drop hitch. The difference between the two measurements is your required drop.
- If your receiver height is lower than your coupler height, you need a rise hitch (often the same hitch flipped over). The difference is your required rise.

Always aim for a hitch that gives you the closest possible level. A little bit off is usually fine, but significant discrepancies are dangerous.

3. Ball Size: Match Your Trailer Coupler

Just like the shank diameter, the ball size is non-negotiable. Your trailer’s coupler will have its required ball size stamped on it. The most common sizes for equipment trailers are:

2 inches
2-5/16 inches

Always double-check your trailer’s coupler before buying a ball mount. Using the wrong size can lead to a dangerous disconnect.

4. Weight Rating: Don't Guess, Verify!

This is arguably the most critical factor. Every component in your towing setup – your tow vehicle, the receiver, the drop hitch, the ball mount, the hitch ball, the trailer, and even the safety chains – has a weight rating. You must always adhere to the lowest weight rating of any single component in your setup.

Understanding Key Weight Terms:

Gross Trailer Weight Rating (GTWR): This is the maximum weight of the fully loaded trailer, including the trailer itself and its cargo.
Tongue Weight (TW): This is the downward force exerted by the trailer's tongue on the hitch ball. It should typically be 10-15% of the GTWR for conventional trailers.

When you're looking at a drop hitch and ball mount, it will have a stated GTWR. For example, a common setup might be a 2” Drop Hitch with a 6,000 lb Ball Mount Set. This means the ball mount and ball are rated to safely handle a trailer weighing up to 6,000 pounds fully loaded. If your trailer and equipment weigh 7,000 lbs, this hitch is not adequate.

When a 6,000 lb Hitch Isn't Enough

While a 2” drop hitch with a 6,000 lb ball mount is a popular and suitable choice for many smaller utility trailers or landscaping equipment, you'll quickly exceed this capacity when towing heavier skid steers, mini excavators, or larger dump trailers. Many compact equipment trailers alone can weigh 2,000-3,000 lbs empty, add a 4,000-8,000 lb machine, and you're well over 6,000 lbs.

If your combined trailer and equipment weight exceeds 6,000 lbs, you need to step up to a heavier-duty hitch. These will typically feature:

Higher GTWRs (e.g., 10,000 lbs, 14,000 lbs, 20,000 lbs)
Larger ball sizes (often 2-5/16”)
More robust construction

Always consult your equipment's operating manual and the trailer's specifications to determine the exact weight you're towing. Never overload your hitch.

Get Connected with SmithCustomz Skid Steer Hitch Receivers

Before you can even think about a drop hitch and ball mount, you need a solid receiver on your skid steer or mini track loader. That's where SmithCustomz comes in. We fabricate tough, reliable, American-made hitch receivers designed to stand up to the daily grind of your work.

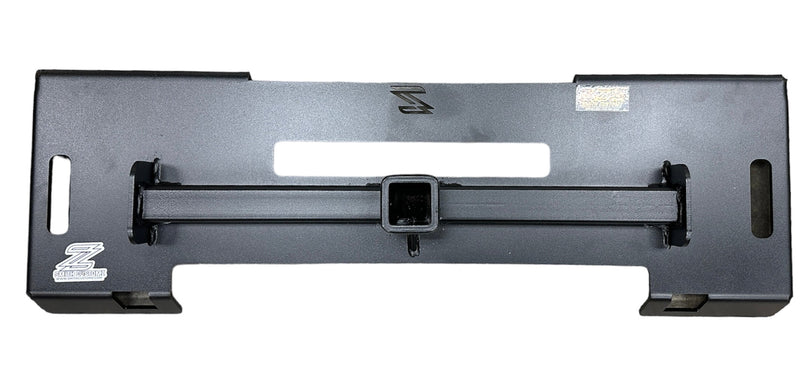

For full-size skid steers, check out our Full Size Skid Steer Trailer Hitch Receiver. It's built to give you a strong, standard 2-inch receiver point for your towing needs.
If you're running an ASV or Terex machine, we've got you covered with our specific ASV / Terex Trailer Hitch Receiver Mount.
And for those smaller jobs with a Bobcat MT series, our Bobcat MT Trailer Hitch Receiver Mount ensures you can move your smaller trailers with confidence.

Our attachments are designed to seamlessly integrate with your machine, providing a secure foundation for whatever drop hitch and ball mount you choose.

Final Check: Before You Tow

Once you've got your perfectly matched drop hitch and ball mount, always perform a quick check before hitting the road:

Secure Connection: Make sure the ball mount is fully inserted into the receiver and secured with the hitch pin and clip.
Coupler Engaged: Ensure the trailer coupler is fully seated on the ball and the latch is locked. Don't forget the safety pin or lock!
Safety Chains: Cross your safety chains under the trailer tongue and attach them to your tow vehicle.
Lights & Brakes: Check that all trailer lights are working and, if applicable, that the trailer brakes are functioning correctly.

The Takeaway

Don't cut corners when it comes to towing. Matching your drop hitch and ball mount to your trailer and equipment's specifications isn't just a recommendation; it's a requirement for safe and efficient operation. Measure twice, verify ratings, and invest in quality components like the American-made receiver hitches from SmithCustomz. Your safety, and the safety of others, depends on it.
