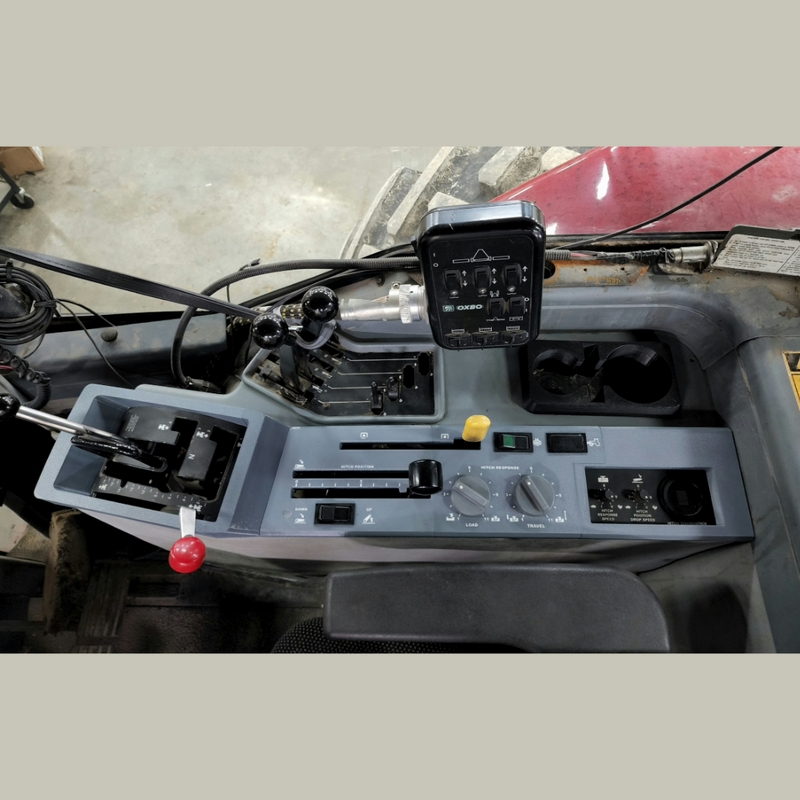

DIY CaseIH Magnum Console Panel Replacement Guide

Say Goodbye to Your Cracked CaseIH Magnum Console Panel

If you've spent any time in a CaseIH Magnum 7100, 7200, or 8900 Series tractor, you've probably noticed it: that cracked, faded, or completely broken console panel. It's a common issue, and it can make your otherwise reliable workhorse feel a lot older than it is. But here's the good news: you don't need to head to the dealer and pay an arm and a leg for a replacement and installation. You can tackle this repair yourself, save serious cash, and upgrade to a more durable, American-made solution.

Why Do CaseIH Magnum Console Panels Crack Anyway?

It's not just bad luck; there are a few reasons why these panels almost universally fail over time:

Original Material Flaws: The factory panels were made from a relatively thin, brittle plastic. While it worked for a while, it wasn't designed for decades of heavy use.
Sun and UV Exposure: Constant exposure to sunlight through the cab windows breaks down the plastic, making it more fragile and prone to cracking.
Vibration and Stress: Tractors vibrate. A lot. Over thousands of hours, these vibrations, combined with the weight of switches, gauges, and your arm resting on the console, create stress points that eventually give way.
Daily Wear and Tear: Whether it's bumps from your knee, tools rattling against it, or just the constant pressing of buttons, the plastic takes a beating. The area around the cupholder is a particularly common failure point.

It's a frustrating problem, but one that's fixable without major headaches.

Dealer vs. DIY: The Real Cost of a Console Panel

Let's be direct: taking your tractor to the dealer for a console panel replacement is going to cost you. You're looking at a hefty price for the OEM part, plus several hours of shop labor. That bill can easily climb into the four figures. For many operators and small contractors, that's just not practical for what should be a straightforward repair.

By choosing an aftermarket, American-made replacement panel from SmithCustomz and doing the installation yourself, you're looking at a fraction of that cost. You'll save hundreds, if not thousands, and you'll gain the satisfaction of knowing you fixed it right.

Choosing the Right TractorPrint Replacement Panel for Your Magnum

This is where it's crucial to get it right. CaseIH Magnum tractors came with different PTO (Power Take-Off) control setups, which means different console panels. TractorPrint, available through SmithCustomz, offers two main options, both designed to be stronger and more durable than the originals:

1. For CaseIH Magnum 7100 & Early 7200 Series (Lever PTO)

Identify It: If your tractor has a physical lever on the console that you pull or push to engage the PTO, this is your panel. These were common on all 7100 Series Magnums and the earlier models of the 7200 Series.
The Right Part: You'll need the CaseIH Magnum 7100 & Early 7200 Replacement Console Panel (Lever PTO). This panel is specifically designed to accommodate the lever mechanism and all the associated switches and gauges.

2. For CaseIH Magnum 7200 & 8900 Series (EPTO - Electronic PTO)

Identify It: If your PTO is engaged by pressing an electronic button or switch (often with an indicator light), you have an EPTO system. This setup was standard on later 7200 Series models and all 8900 Series Magnums.
The Right Part: Your tractor requires the CaseIH Magnum 7200 & 8900 Series Replacement Console Panel (EPTO). This panel has the correct cutouts and mounting points for the electronic controls, ensuring a perfect fit.

Always double-check your tractor's specific model and PTO engagement method before ordering. A quick look at your existing console will tell you exactly what you need.

Tools You'll Need for the Job

Before you dive in, gather these basic tools. Most are probably already in your shop:

Socket wrench set (metric and/or standard, depending on your tractor's fasteners)
Screwdriver set (Phillips and flathead)
Wire cutters and strippers (for any wiring repairs, though often not needed for a panel swap)
Pliers (needle-nose can be handy)
Trim panel removal tools (plastic wedges are best to avoid scratching)
Zip ties or cable management clips
Shop light or headlamp
Digital camera or smartphone (for taking pictures during disassembly)
Marker or labels (for wiring)

Step-by-Step Installation Guide: Replacing Your Magnum Console Panel

This isn't a race. Take your time, stay organized, and you'll have your cab looking sharp in an afternoon.

1. Safety First!

Disconnect the battery. This is non-negotiable. You'll be working with electrical components, and you don't want any accidental shorts or shocks.

2. Clear the Deck

Remove anything that's in the way. This might include your seat (or at least slide it back and swivel it), floor mats, or any loose items on the console itself.

3. Document Everything!

This is the most important tip. As you start removing switches, gauges, and wiring harnesses, take pictures from multiple angles. Label wires if needed. You'll thank yourself later when it's time to put everything back together.

4. Disconnect Components from the Old Panel

Carefully remove all switches, warning lights, gauge clusters, and any other components from the old, cracked panel.
Unplug the wiring harnesses from each component. Be gentle with the connectors – they can be brittle.
If your panel has a gear shift boot, you'll need to detach that as well.

5. Remove the Old Console Panel

Locate all the bolts or screws securing the console panel to the tractor's frame. There will likely be several around the perimeter and perhaps underneath.
Once all fasteners are removed, carefully lift and maneuver the old panel out of the cab.

6. Transfer Components to Your New TractorPrint Panel

Now, grab your new TractorPrint console panel (or the EPTO version, if that's what your tractor requires).

Clean all your switches, gauges, and other components thoroughly before transferring them.
Fit each component into its corresponding opening on the new panel. The TractorPrint panels are designed for an exact fit, just like the original, but with improved durability.
Secure them with their original clips, nuts, or screws.

7. Install the New Console Panel

Carefully position the new panel in the cab.
Reconnect all wiring harnesses to their respective components. Refer to your photos and labels! Make sure each connection is snug and secure.
Fasten the new console panel to the tractor's frame using the original bolts/screws. Don't overtighten, but ensure it's secure.

8. Test and Reassemble

Before you put everything else back, reconnect the battery.
Turn the key to the "on" position (don't start the engine yet) and test all your lights, gauges, switches, and the PTO engagement. Make sure everything functions as it should.
If everything checks out, disconnect the battery again, then finish reassembling your cab (seat, floor mats, etc.). Reconnect the battery for good.

Why Choose American-Made TractorPrint Panels from SmithCustomz?

When you buy a TractorPrint replacement console panel from SmithCustomz, you're not just getting a part; you're getting an upgrade. These panels are:

Built Tough: Made from a stronger, more resilient material than the original factory plastic, designed to withstand the harsh realities of farm and construction work.
Exact Fit: Engineered to match the dimensions and mounting points of your original CaseIH Magnum console, ensuring a hassle-free installation.
Made in the USA: Proudly manufactured in the United States, meaning you're supporting American jobs and getting a quality product you can trust.

Get Your Magnum Cab Looking Like New Again

Don't let a cracked console panel detract from the functionality and comfort of your CaseIH Magnum. With a little time, some basic tools, and a durable TractorPrint replacement panel from SmithCustomz, you can restore your cab to its former glory. It's a practical, cost-effective upgrade that will make a big difference every time you step into your tractor.
