Master Manual Grader Angles: Boost Your Skid Steer Grading

Unlock the Full Potential of Your Manual Skid Steer Grader

You've got a manual adjustable grader for your skid steer, which means you've made a smart investment in versatility and control. Unlike a fixed-position grader, your manual unit lets you fine-tune your blade angles for a variety of tasks. It's a workhorse that, with a little know-how, can tackle everything from gravel driveways to maintaining private roads.

Here at SmithCustomz, we build these tough, American-made attachments to work as hard as you do. Our SSMA Manual Adjustable 4-Blade Skid Steer Grader is designed for precision, and knowing how to adjust those blades is key to getting the best results.

Understanding Your Grader's Blades

Most quality skid steer graders, like ours, feature a 4-blade system. You've got two leading blades and two trailing blades. The manual adjustment typically involves a series of pins and holes, allowing you to set the angle of the entire grader box or even individual blade sections in some designs. This flexibility is what we're going to leverage.

Setting Your Blades for Specific Tasks

Let's dive into some common scenarios and how to adjust your grader blade angle for optimal performance.

1. Windrowing Gravel Outward

When you're trying to gather material and move it to one side – perhaps to clear a path or prepare for a fresh layer – you need to create a funnel effect. This is classic windrowing.

• The Goal: To efficiently move loose material (like gravel, dirt, or even snow) to the edge of your work area.
• How to Adjust:
  • Angle the entire grader box slightly in the direction you want the material to move.
  • A common starting point is an angle of 5-10 degrees from straight. You'll set both the front and rear blades to this same angle.
  • Imagine you're trying to sweep debris off a sidewalk with a broom; you'd angle the broom. Your grader works similarly.
  • The leading blades will initiate the material movement, and the trailing blades will help contain and direct the windrow.
  • For a tighter, more concentrated windrow, you can increase the angle slightly, but be careful not to angle so much that you're just pushing material sideways without forward progress.

2. Cutting a Crowned Road (or Driveway)

A crowned road or driveway has a higher center that slopes gently down to the shoulders. This is crucial for proper drainage, preventing water from pooling and eroding your surface.

• The Goal: Create a consistent slope from the center to the edges.
• How to Adjust: This is where the manual adjustable nature of your grader shines, as it allows for opposing angles.
  • Angle the front blades slightly inward, towards the center of the grader box.
  • Angle the rear blades slightly outward, away from the center of the grader box.
  • The front blades will push material towards the center, beginning to build the crown.
  • The rear blades will then take that centralized material and spread it outwards, shaping the crown and creating the slope.
  • You'll typically make multiple passes. Start with a shallower angle (e.g., 2-3 degrees in/out) and gradually increase it as you build the crown. Keep your passes overlapping and consistent.
  • This technique requires a bit of practice, but it's incredibly effective for long-term surface integrity.

3. Back-Dragging for Finishing or Ditch Work

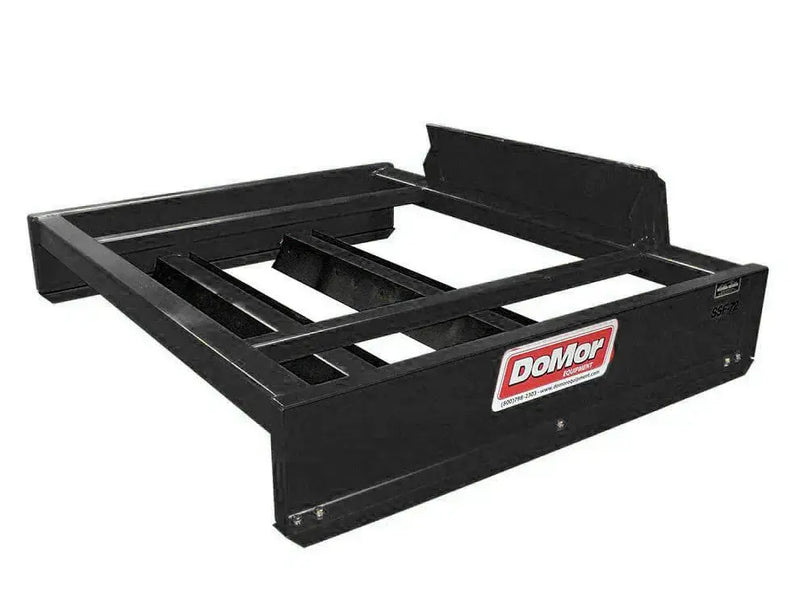

Back-dragging is invaluable for smoothing out imperfections, filling low spots, or shaping specific features like ditches. While a SSF Fixed Position 4-Blade Skid Steer Grader excels in consistent forward passes, your manual unit offers more versatility here.

• The Goal: To create a smooth, level finish, or to pull material from a specific area.
• How to Adjust for Finishing:
  • For general smoothing and filling, keep your blades relatively straight (0-2 degree angle).
  • As you back up, the rear blades become your primary cutting and leveling tools. They'll shave off high spots and drag material into low spots.
  • You can also set a very slight inward angle on the rear blades to pull a small amount of material into the center, effectively filling minor imperfections.
• How to Adjust for Ditch Work:
  • If you're shaping or cleaning out a ditch, you'll want to angle the blades to pull material out of the ditch as you back along its edge.
  • Angle the blades slightly outward on the side closest to the ditch. This scoops material from the ditch bottom and pulls it up onto the shoulder.
  • This is a precise operation; take your time and make shallow passes.

Blade Wear: When to Rotate or Replace Your Cutting Edges

Your cutting edges are the workhorses of your grader. They take the brunt of the abuse, so regular inspection is critical for maintaining performance and extending the life of your attachment. All SmithCustomz graders feature robust, replaceable cutting edges designed for durability.

Inspecting Your Cutting Edges

Periodically, lift your grader off the ground and take a good look at your blades. Here's what to look for:

• Rounded Edges: Over time, the sharp edge of the blade will become rounded or blunted. This significantly reduces its ability to cut and grade effectively, instead pushing material rather than shaving it.
• Scalloping or Uneven Wear: If you see wavy patterns or deeper wear spots in certain areas, it could indicate consistent work on uneven terrain, specific obstacles, or even slightly off-level grading.
• Thickness Reduction: As the blade wears, it becomes thinner. If it's getting dangerously thin, it's time for replacement.
• Chips or Cracks: Impact damage can cause chips or cracks. These compromise the blade's integrity and can lead to more severe damage.

Rotating Your Blades

Most grader blades, including those on our SmithCustomz units, are reversible. This means they have two usable cutting edges. When one edge becomes worn:

• Actionable Advice: Simply unbolt the blade, flip it over, and reattach it. This gives you a fresh cutting edge and effectively doubles the lifespan of each blade. Always ensure all bolts are properly torqued after rotation.

When to Replace

Once both edges of a blade are significantly worn, or if a blade is bent, severely cracked, or damaged beyond safe use, it's time for a replacement. Running with worn-out blades reduces your efficiency and can put undue strain on your machine and other parts of the grader.

• Actionable Advice: Always use high-quality, hardened steel replacement blades. SmithCustomz designs our attachments to use standard, readily available cutting edges, making maintenance straightforward.

General Tips for Manual Grader Success

• Start Slow: Especially when learning new angles, take your time. You can always make another pass.
• Multiple Passes: Don't try to move too much material in one go. Make several shallow passes to achieve your desired grade.
• Practice Makes Perfect: The more you use your manual grader, the more intuitive the adjustments will become.
• Keep Your Machine Level: Your skid steer's bucket tilt can also influence your grade. Keep your loader arms and bucket as level as possible for consistent results.
• Material Matters: The type of material you're working with (dry gravel, wet dirt, sand) will affect how it moves and how aggressively you can grade. Adjust your speed and angle accordingly.

For operators needing on-the-fly, precise adjustments without leaving the cab, consider our SSHA Hydraulic Adjustable 4-Blade Skid Steer Grader. But for pure value and robust performance, your manual grader is hard to beat.

The Takeaway

Your manual adjustable skid steer grader is a powerful tool. By understanding how to properly set your blade angles for windrowing, crowning roads, or back-dragging, you're not just moving dirt – you're mastering your craft. Regular blade inspection and maintenance will keep your SmithCustomz grader performing at its peak for years to come. Get out there, experiment with those angles, and see the difference precision makes!
