Skid Steer Bolt Torque: Your Guide to Secure Attachments

Why Torque Specs Are Non-Negotiable for Skid Steer Operators

You run your skid steer hard, pushing it to its limits every day. Your attachments take a beating, too. But all that power and precision mean nothing if your attachments aren't securely fastened. That's where proper bolt torque comes in. It's not just a suggestion; it's critical for safety, performance, and the lifespan of your equipment.

Think of bolt torque as the exact handshake between your bolt and the material it's holding. Too weak, and it'll let go. Too strong, and you'll break its hand. Getting it right ensures your attachment stays put, functions correctly, and doesn't become a hazard.

The Dangers: Under-Tightening vs. Over-Tightening

Many operators think, "Tighter is better," or simply crank on a wrench until it feels snug. Both approaches are asking for trouble.

Under-Tightening: A Recipe for Disaster

• Vibration and Loosening: Your skid steer vibrates constantly. An under-torqued bolt will quickly back out, leading to loose attachments, excessive wear, and potential catastrophic failure.
• Component Damage: Loose parts can rattle, bang, and grind against each other, causing premature wear on pivot points, mounting holes, and other critical components.
• Reduced Performance: If your bucket or grapple isn't rigidly attached, you lose efficiency and control.
• Safety Hazard: An attachment coming loose while operating is a severe safety risk to you and anyone around your worksite.

Over-Tightening: The Silent Killer

• Bolt Stretching and Failure: When you over-tighten a bolt, you stretch it past its elastic limit. It loses its ability to hold tension and can snap, sometimes immediately, sometimes after a short period of operation.
• Thread Damage: You can strip the threads on the bolt or, worse, the threads in the component itself. Repairing stripped threads can be a costly, time-consuming job.
• Material Fatigue: Over-torquing can put excessive stress on the surrounding material, leading to cracks or deformation in the attachment or loader frame over time.
• Difficulty in Removal: A stretched or seized bolt can be a nightmare to remove, often requiring cutting or drilling.

Understanding Bolt Grades: Focus on Grade 8

Not all bolts are created equal. For heavy-duty applications like skid steer attachments, you'll almost always be dealing with Grade 8 bolts. These are identified by six radial lines on the bolt head and are designed for high strength and critical applications.

• Grade 8 Bolts: High tensile strength, heat-treated, ideal for high-stress applications like mounting plates, cutting edges, and hydraulic cylinder connections. Always replace Grade 8 with Grade 8.
• Grade 5 Bolts: (Identified by three radial lines) While common in automotive and lighter industrial use, they are generally not strong enough for the primary structural connections on a skid steer attachment. Avoid using them where Grade 8 is specified.

Your Essential Tool: The Torque Wrench

You can't eyeball torque. You need a reliable torque wrench. There are a few types:

• Click-Type Torque Wrenches: The most common. You set the desired torque, and it "clicks" when you reach it. Ensure yours is calibrated regularly.
• Beam-Type Torque Wrenches: Simple, no calibration needed, but you have to watch the dial as you tighten.
• Digital Torque Wrenches: Offer high precision and often have a digital readout and audible alarm.

Always use the correct size socket for your fasteners to prevent rounding off the bolt heads.

Common Skid Steer Bolt Sizes & Grade 8 Torque Specs (UNC Coarse Thread)

This chart provides common Grade 8 bolt torque values for dry and lubricated threads. Always refer to your attachment or skid steer manufacturer's specific recommendations first. If no specific value is provided, these are excellent guidelines for UNC (Unified National Coarse) threads, which are standard on most heavy equipment.

Important Note on Lubrication: "Dry" torque values assume clean, unlubricated threads. If you apply anti-seize, oil, or any lubricant to the threads, you must reduce the torque value (typically by 20-30%) to achieve the same clamping force. The "Lubricated" column above provides common reduced values. Using a dry torque spec on lubricated threads will result in significant over-tightening.

Best Practices for Torquing Fasteners

• Clean Threads are Key: Always ensure the bolt threads and the mating threads are clean and free of rust, dirt, paint, or old threadlocker. Debris can skew your torque reading.
• Use Proper Washers: Flat washers distribute the load, and lock washers (split, star, or Nord-Lock) help prevent loosening due to vibration. Ensure you're using the correct type and grade for the application.
• Tighten in Stages: For larger or multiple-bolt patterns (like a mounting plate), tighten bolts in a star or crisscross pattern, gradually increasing torque to the final spec in 2-3 steps. This ensures even clamping force.
• Confirm with a "Click": If using a click-type wrench, once it clicks, stop. Don't keep turning.
• Don't Use Impact Wrenches for Final Torque: Impact wrenches are great for quick removal and initial snugging, but they are not accurate for final torque settings. Always finish with a calibrated torque wrench.

Where You'll Apply These Specs

You'll find critical bolted connections all over your skid steer and its attachments. Pay close attention to:

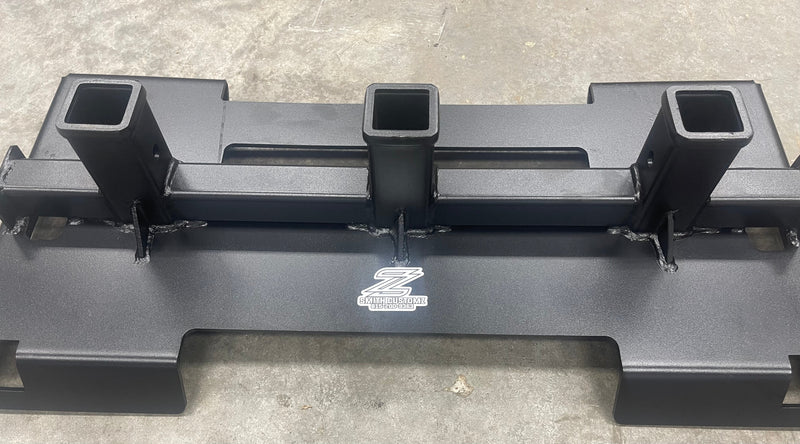

• Attachment Mounting Plates: The bolts holding your quick-attach plate to the attachment frame. When you're installing new components like our American-made Gehl Skid Steer Mounting Ears, ensuring the correct torque on the mounting hardware is non-negotiable for safety and proper fit.
• Cutting Edges: Bolts securing bucket cutting edges and wear parts.
• Hydraulic Cylinders: The bolts connecting cylinder ends to the attachment frame.
• Grapple Tines and Forks: Connections that see a lot of dynamic stress.
• Wheel Bolts: Crucial for keeping your wheels on the machine!

At SmithCustomz, we build our attachments and components tough, right here in the USA. But even the best American-made steel needs to be assembled correctly to perform its best. Using proper torque is a fundamental part of that.

When to Re-Check Torque

Bolts can settle and even stretch slightly under initial load. It's good practice to:

• After Initial Use: Re-check torque on newly installed or heavily serviced connections after the first 8-10 hours of operation.
• Periodically: Incorporate critical bolt torque checks into your regular maintenance routine, especially on attachments that experience high vibration or impact.

The Takeaway: Your Responsibility, Your Safety

Understanding and applying proper torque specs is a fundamental skill for any skid steer operator. It's not just about keeping your equipment running; it's about protecting your investment, preventing costly downtime, and most importantly, ensuring your safety and the safety of those around you. Grab your torque wrench, consult your manuals, and make precise torquing a habit.
