D-Ring Tie-Down Anchor Inspection: Pre-Haul Checklist

You check your tires before a haul. You check your hitch. Do you check your D-rings? Most operators don't — until a ring lets go on the highway with a skid steer attachment strapped over it. A 3/8" D-ring anchor looks like the toughest part of your tie-down system. It's also the part getting the least attention, and it's carrying the full load every time you pull a strap tight.

Here's a real pre-haul routine you can run in under five minutes per anchor, before the straps ever go on.

Start With the Weld, Not the Ring

The ring itself is forged and thick. It's rarely the failure point. The weld holding the mounting plate to your trailer deck or bed is where things actually go wrong.

Look for hairline cracks around the perimeter of the weld bead, especially where the plate meets the deck. Cracks often start small and dark, almost like a pencil line, before they spread.
Check for rust bleeding out of the weld instead of just sitting on top of it. Surface rust on painted metal is normal. Rust weeping from inside a weld seam means moisture got into a crack you can't fully see yet.
Run your thumb along the bead. A sound weld feels continuous. If you feel a gap, a pit, or a spot where the bead just stops and starts again, that's a weak point.
Tap the plate with a wrench. A solid weld gives a tight, consistent sound. A cracked or partially separated weld often sounds different — flatter or with a slight rattle — compared to the anchors next to it. Compare a few on the same trailer to get a baseline for what's normal.

If you find a cracked weld, don't grind it smooth and call it good. A ground-over crack still has the crack underneath it. That anchor needs to come off.

Check the Ring for Shape

A D-ring is supposed to be a D. Once it's been overloaded or side-loaded, it stops looking like one.

Bent or opened-up rings — where the ring has spread wider than its original shape — have already been stressed past what they should handle. Metal that's been bent once is more likely to bend again, and next time it might not stop at "bent."
Flat spots or kinks in the curve of the ring usually mean a strap or chain got cranked down at a bad angle and worked the metal instead of just holding it.
Gouges or deep scrapes in the ring itself — from chain hooks dragging across it under tension — thin out the metal at that exact spot. That's now the weakest point on the ring, even if the rest of it looks fine.

Lay a straightedge across the opening of the ring if you're not sure whether it's bent. Compare it to a known-good anchor. If it doesn't match up, it's not going back into service.

Don't Skip the Hardware

The bolt, nut, or pin holding the anchor plate down does its own kind of quiet damage over time.

Thread wear from repeated tightening and loosening eventually lets a nut spin on with less resistance than it should. If a nut threads on smooth and loose where it used to take real effort, the threads are worn past where you can trust them.
Rounded bolt heads or nut corners mean somebody's been using the wrong size wrench or a worn-out socket on it. Rounded hardware is harder to torque correctly next time, and it's usually a sign the anchor's been serviced more than once already.
Any hardware that's been swapped for something not rated for the load — a grade 2 bolt where a grade 5 or 8 should be — needs to go back to the correct spec. This happens more than you'd think when someone grabs "something that fits" out of a parts bin in a hurry.

When to Cut It Off and Re-Weld

Grinding, hammering, or re-bending a D-ring back into shape doesn't fix it — it just hides the problem until it's loaded again. Cut the anchor off and weld on a new one if you see any of the following:

Any crack in the weld, no matter how small
A ring that's visibly bent, spread, or kinked out of its original shape
Deep gouges or wear spots that have measurably thinned the ring material
Hardware threads worn smooth or hardware that's been replaced with the wrong grade

There's no gray area here. An anchor either holds full load in a straight line, or it doesn't. If you're second-guessing it, that's your answer.

Build the Habit Into Your Routine

The easiest way to actually do this inspection is to make it part of the same walk-around you're already doing for lights, tires, and the hitch. Anchors take thirty seconds each once you know what you're looking at. Skipping it takes zero seconds — until it doesn't.

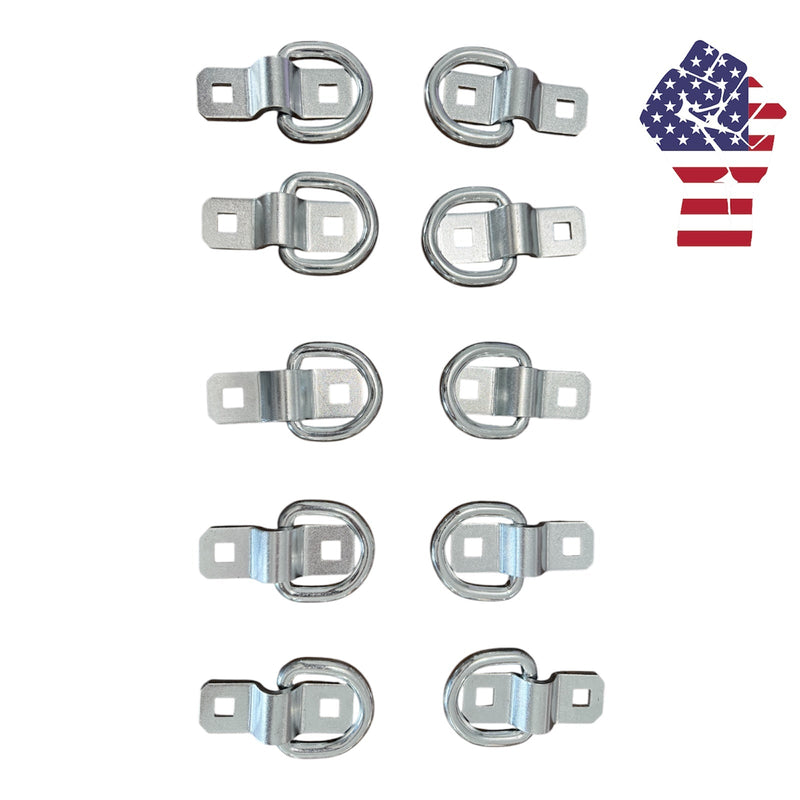

If you're replacing worn anchors, SmithCustomz sells 3/8" D-Ring Tie-Down Anchors in a 10-pack, made in the USA, so you can replace a bad one on the spot instead of running a trailer half-equipped while you wait on a special order. Buying in a pack also means you're not tempted to keep a marginal anchor in rotation just because it's the only one you've got left.

If you're setting up a bed or trailer from scratch, or replacing anchors one at a time is starting to feel like a losing game, look at a full truck bed tie-down system instead. It gets every anchor point installed at once, at the correct spacing and weld quality, so you're not chasing down individual repairs down the road.

Next time you hook up a trailer, before you throw the first strap over your attachment, walk the deck and check every anchor the way you'd check a hitch pin. It's the same five minutes either way — the only question is whether you spend it before the haul or after something goes wrong during it.
