Quick Attach Latch Replacement: Weld-On Spring Latch Fix

Stop the Wobble: Why a Sloppy Latch is a Big Problem

You rely on your skid steer or mini track loader to work hard, and those attachments need to be locked in tight. A worn-out quick attach spring latch can turn a precise job into a wobbly mess, and worse, a serious safety risk. If your buckets, forks, or other implements are rattling, bouncing, or not sitting securely, it's time to address that sloppy latch.

Ignoring a worn latch means accelerated wear on your attachment ears, your quick attach plate, and even your machine's loader arms. It reduces your control, makes tasks harder, and creates an unnecessary hazard for you and anyone else on the job site. The good news? Replacing a weld-on spring latch is a practical repair you can tackle yourself, saving you from costly downtime or replacing an entire quick attach plate.

What You'll Need: Tools for the Job

Before you start cutting and welding, gather your gear. Having everything ready saves time and ensures a smoother process.

• Personal Protective Equipment (PPE): Welding helmet, heavy-duty welding gloves, safety glasses (for grinding), hearing protection, long sleeves/pants.
• Angle Grinder: With both grinding wheels and cut-off wheels.
• Plasma Cutter or Oxy-Acetylene Torch: (Optional, but makes cutting much faster and cleaner if you have access).
• Wire Brush: For cleaning surfaces.
• C-Clamps or Vice Grips: To hold the new latch in place.
• Tape Measure and Marking Tool: (Soapstone or marker).
• Welder: MIG, TIG, or Stick welder, along with appropriate welding rods or wire.
• Fire Extinguisher: Always have one handy when welding.

Step-by-Step: Replacing Your Weld-On Spring Latch

1. Safety First, Always.

Before you even think about grabbing a grinder, ensure your machine is safe. Park it on level ground, engage the parking brake, lower your loader arms, and disengage any hydraulics. If possible, remove the attachment you'll be working on, or block it securely so it can't move. Put on all your PPE – this job involves sparks, heat, and molten metal.

2. Assess the Damage.

Take a good look at the existing latch. Is the spring weak or broken? Is the pin itself worn down, bent, or chipped? Also, inspect the quick attach plate's latch slot. Is it wallowed out or severely deformed? Most of the time, it's the latch itself that's worn out, not the plate. That's good news, because an American-made Weld-On Spring Latch (B2598LP) from SmithCustomz is a lot cheaper and faster to replace than a whole quick attach plate.

3. Cut Out the Old Latch.

This is where your grinder or plasma cutter comes in. Carefully grind down the old welds around the base of the latch. If it's heavily welded, you might need to use a cut-off wheel on your grinder or a plasma cutter to cut the latch base free. Be precise here. You want to remove the old latch without damaging the quick attach plate itself. Take your time, make shallow cuts, and avoid digging into the underlying steel of your quick attach.

4. Prep the Quick Attach Plate.

Once the old latch is off, clean up the area thoroughly. Use a grinding wheel to remove any remaining weld material, slag, rust, or paint. You want a clean, flat, bare metal surface for your new weld. This ensures a strong, durable bond. Check for any gouges or deformities from the removal process. If the slot itself is severely damaged, like on some Toro Dingo or CII Quick Attach plates, we offer a DIY Latch Slot Repair Plate that can save you from replacing the whole thing. For most standard quick attaches, a clean grind is all you need.

5. Position the New Latch for Perfect Engagement.

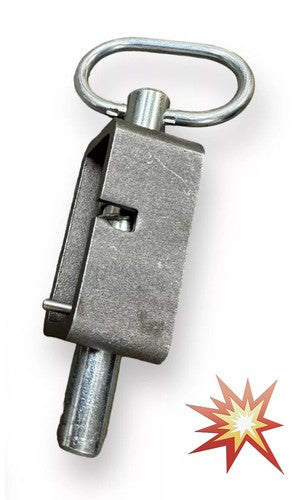

This is the most critical step for proper attachment fit and long-term performance. Grab your new Weld-On Spring Latch (B2598LP). Here's the trick: temporarily attach an implement to your quick attach. This will give you the perfect reference point for where the new latch needs to sit.

• Slide the new latch into its desired position so the pin engages snugly into the attachment's receiver hole.
• The goal is full engagement with minimal slop. Make sure the latch is perpendicular to the plate – not tilted.
• Verify that the latch pin fully extends into the attachment's receiving hole and retracts smoothly.
• Use C-clamps or vice grips to hold the latch firmly in place. Double-check its position, engagement, and alignment one last time before welding.

6. Weld it In Solid.

With the latch clamped securely, you're ready to lay down some beads. Start with a few strong tack welds to ensure it doesn't shift when you remove the clamps. Once tacked, remove the clamps and fully weld around the entire base of the latch. Use good welding practices: clean metal, proper heat settings for your material thickness, and consistent travel speed to achieve full penetration and a strong, clean weld.

Don't rush it. Weld all around the base, ensuring there are no gaps or cold welds. Let the weld cool naturally. Don't quench it with water, as this can create brittle welds and weaken the repair.

7. Finishing Touches.

Once the weld has cooled, inspect it carefully. Use your grinder to smooth down any sharp edges, spatter, or high spots that could snag or cause issues. Test the latch mechanism: make sure it moves freely and the spring tension is good. If you want to protect your repair and give it a professional look, apply a coat of primer and then paint to match your quick attach or machine.

Why a Quality Latch Matters

When you're dealing with heavy equipment, cutting corners isn't an option. A high-quality, American-made weld-on spring latch, like the ones from SmithCustomz, is designed to withstand the constant abuse your equipment takes every day. They feature robust springs and durable pins, ensuring your attachments stay put through tough digging, lifting, and pushing.

A $30 latch might seem like a small part, but its quality directly impacts your safety and productivity. Investing in a durable replacement means fewer repairs down the road, better control over your attachments, and less wear and tear on your entire system. It's a smart investment that pays off big in safety, productivity, and reduced wear on your machine and attachments.

The Takeaway: Lock it Down, Work Safer

Don't let a worn-out quick attach latch compromise your safety or productivity. Taking the time to properly replace it with a quality part is a straightforward repair that makes a huge difference. By following these steps, you'll ensure your attachments are locked tight, giving you the confidence to tackle any job efficiently and safely. Keep your equipment in top shape, and it'll keep working hard for you.
