A New Latch Isn't Automatically a Tight Latch
Here's a scenario that plays out in shops every week: an operator gets sick of a sloppy attachment mount, orders a new weld-on spring latch, tacks it in roughly where the old one sat, and finishes the weld. Attaches a bucket. Still rattles. Still feels loose. Still doesn't lock with that solid "clunk" everyone's chasing.
The part isn't the problem. The geometry is.
A spring latch isn't just a hook that swings and catches on something. It's a mechanical system that depends on precise angles and clearances to convert spring force into a locked, zero-play connection. Get the geometry wrong and you can weld in the best latch on the market and still end up with slop.
The Three Things That Actually Control Lock Quality
1. Latch Pocket Height
The pocket is the receiver — the slot or lug on the attachment side that the latch nose drops into and grabs. If the pocket sits even 1/8" too high or too low relative to where the latch was designed to engage, you lose full nose penetration into the pocket.
Partial engagement means partial contact. Partial contact means the attachment can rock, even if the latch spring is under full tension. This is the number one reason a "new" latch feels just as sloppy as the worn one — the pocket geometry on the wearplate or repair plate wasn't matched to the latch's throw.
2. Approach Angle
Approach angle is the angle at which the latch nose travels as it swings toward the pocket during engagement. This is almost entirely controlled by where and how you weld the latch body to the mounting plate.
If you weld the latch even a few degrees off from its designed pivot orientation, one of two things happens:
- The nose contacts the pocket edge before it can seat fully, and the spring never gets to load properly.
- The nose overshoots the pocket, seats shallow, and relies on spring pressure alone to hold position — which wears loose again fast.
A latch welded 5 degrees off its intended approach angle can lose 30-40% of its holding contact area. That's not a defective part. That's a positioning error.
3. Spring Tension at the Point of Engagement
Spring tension isn't a flat number — it changes through the latch's range of motion. The spring is designed to be near maximum compression right as the nose bottoms out in the pocket. That's what gives you the solid, locked feel.
If your weld position shifts where "full engagement" happens relative to the spring's travel, you can end up with the latch locking at a point where the spring still has slack in it. It'll close. It'll look locked. But under bucket load, breakout force, or grading vibration, it'll walk loose because the spring was never asked to do its full job.
Why the Old Latch Was Sloppy — And Why Copying It Doesn't Fix Anything
A worn-out latch usually got that way from years of the nose riding against a pocket edge that's been hammered oversized, or a pivot pin that's egged out and shifted the whole approach angle over time. If you tack your new latch into the exact same position as the old worn one, you're not restoring geometry — you're just inheriting the same bad angle with a fresh part.
This is why a lot of "latch replacements" don't actually solve the rattle. The fix has to include correcting the pocket and mounting geometry, not just swapping components.
How to Weld It Right
- Dry-fit before you tack. Set the latch, engage it into the pocket by hand, and check nose penetration depth against spec before any weld goes down.
- Check approach angle with the attachment hanging, not sitting on the ground. Geometry changes under load — verify it in the position it'll actually operate in.
- Confirm full spring compression at full engagement. You should feel resistance building right up to the point the nose bottoms out — not before, not after.
- Tack, test, then final weld. Don't commit to a full weld pass until you've cycled the latch a few times and confirmed a solid, consistent lock with zero play.
When the Pocket Itself Is the Problem
Sometimes the latch geometry is fine and the real issue is a worn or damaged latch slot on a Toro Dingo or CII-style mount plate. Elongated pockets, cracked edges, or a chewed-up slot will sabotage even a perfectly welded latch.
For operators running Toro Dingo or CII-pattern mini skid steers, SmithCustomz makes a Toro Dingo / CII Latch Slot Repair Plate — a raw, 1/4" American steel plate designed for shops that want to cut out the worn section and weld in fresh, correctly-dimensioned pocket geometry rather than guess-and-check a repair. If the whole mount plate is beyond saving, the Toro-style Quick Attach Mount Plate gives you a clean slate to build from.
The Latch Itself Matters Too

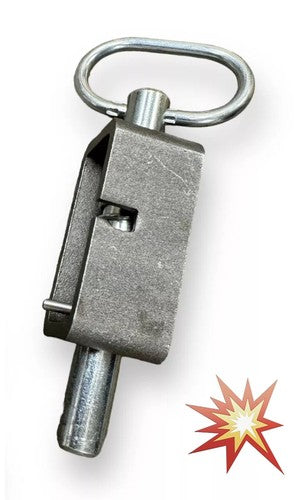

Assuming your pocket geometry is solid, the latch you weld in needs to match the tension and throw the pocket was designed around. The Weld-On Spring Latch (B2598LP) is built to spec, American-made, and sized to give you the nose penetration and spring load needed for a real lock — not just a part that swings and catches.
Bottom Line
A spring latch locks because of geometry, not because it's new. Before you weld anything in, dry-fit it, check the approach angle under load, and confirm full spring compression at full engagement. Get the angle right the first time, and you won't be back under that attachment in six months wondering why it's rattling again.
